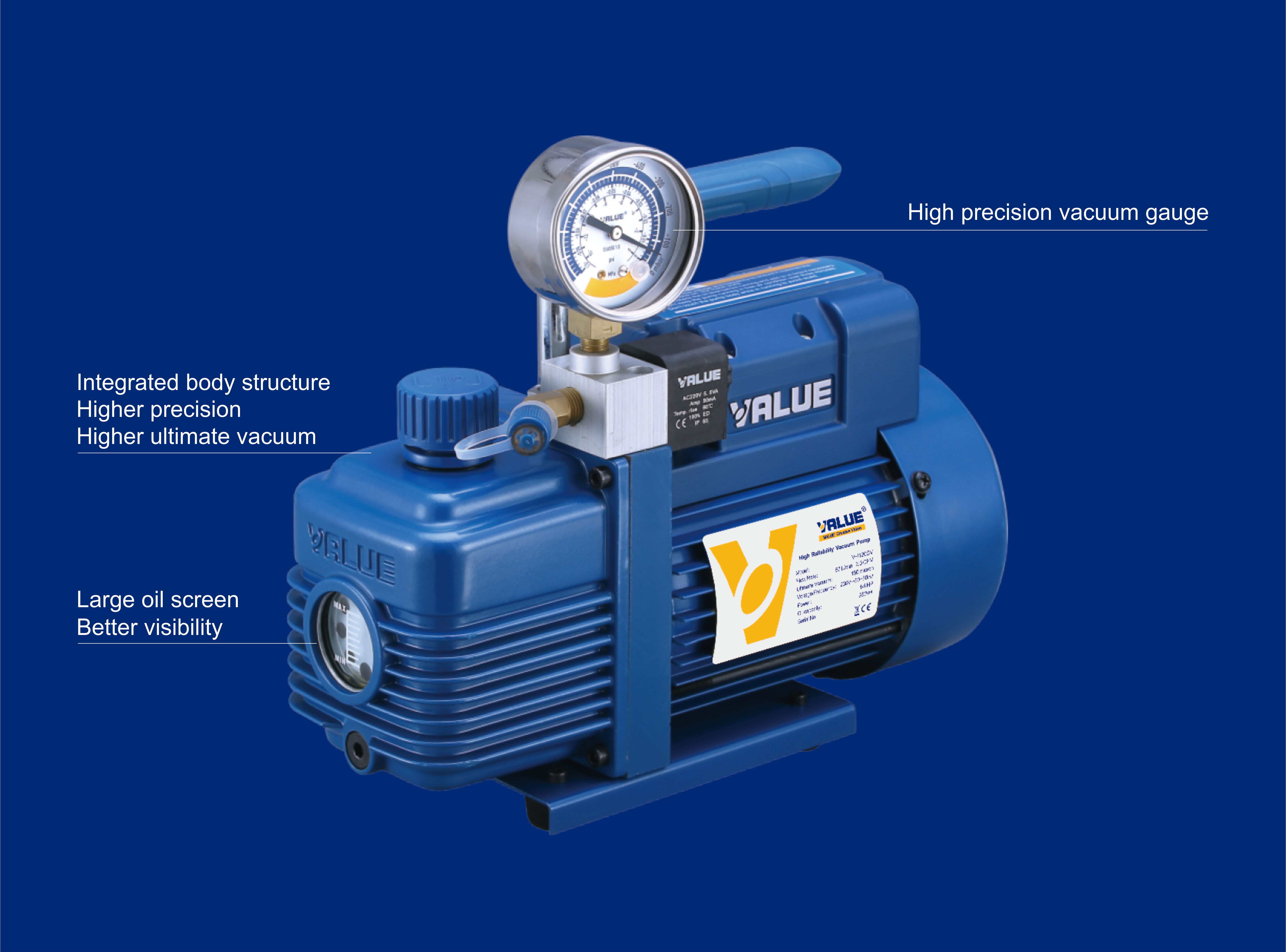

· Integrated Body Structure
· High Precision Vacuum Gauge
· Solenoid Valve
· Large Oil Screen
| Model | V-i120SV | V-i140SV | V-i160SV | V-i180SV | |
| Power Supply | 220V~/50Hz | 220V~/50Hz | 220V~/50Hz | 220V~/50Hz | |
| Flow Rate | 50Hz | 1.8 CFM | 3.5 CFM | 5.0 CFM | 7.0 CFM |
| 51 L/min | 100 L/min | 142 L/min | 198 L/min | ||
| 60Hz | 2.0 CFM | 4.0 CFM | 6.0 CFM | 8.0 CFM | |
| 57 L/min | 113 L/min | 170 L/min | 226 L/min | ||
| Ultimate Vacuum | Partial Pressure | 2 Pa | 2 Pa | 2 Pa | 2 Pa |
| Total Pressure | 150 micron | 150 micron | 150 micron | 150 micron | |
| Power | 1/4 HP | 1/3 HP | 1/2 HP | 3/4 HP | |
| Inlet Port | 1/4" SAE | 1/4" SAE | 1/4" SAE | 1/4" SAE | |
| Oil Capacity | 250 ml | 250 ml | 660 ml | 660 ml | |
| Dimensions | 290x124x255 mm | 318x124x265 mm | 338x138x275 mm | 395x145x318 mm | |
| Weight | 6.7 kg | 8.6 kg | 10.3 kg | 15.4 kg | |
