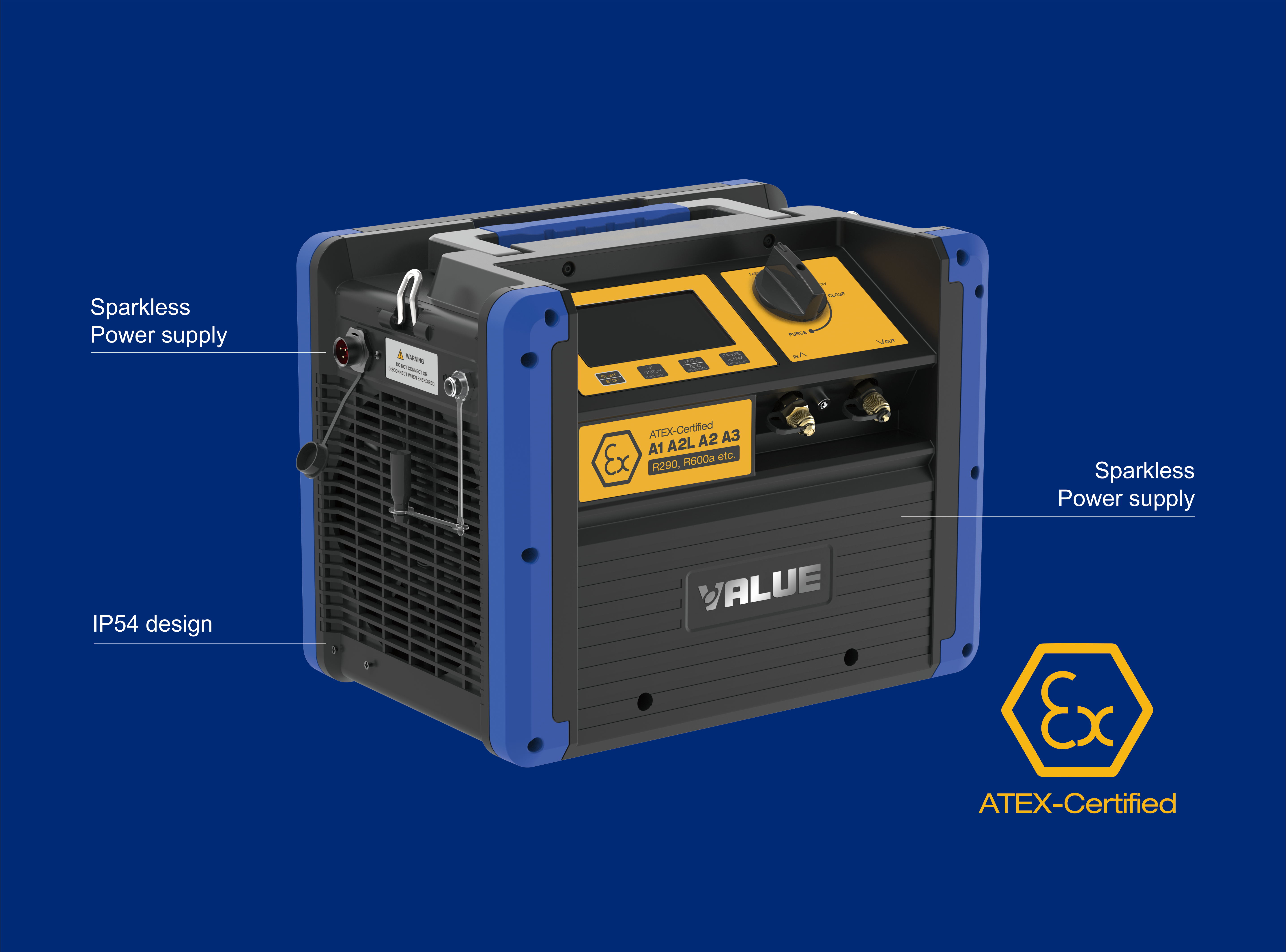

· Designed for R290, R600a
· Fast and Efficient Recovery
· Large Backlit Display
· Oil-Free Compressor
· Purge Function
· IP54 Design
*ATEX No.: CSANe 22ATEX1032X
| Model | VRDDF | |||
| Refrigerant | Categorys Ⅱ:R600a Categorys Ⅲ: R12, R134a, R401C, R500, 1234yf Categorys Ⅳ: R22, R401A, R401B,R402B,R407C,R407D,R408A, R409A,R411A, R411B, R412A,R502, R509, R290Categorys Ⅴ: R402A, R404A, R407A, R407B, R410A, R507,R32 | |||
| Power Supply | 220-240V~50/60Hz | |||
| Motor | 1 HP | |||
| Motor Speed | 3000 rpm | |||
| Maximal Current Draw | 6.5 A | |||
| Compressor | Oil-less, Air-cooled, Piston style | |||
| Automatic Safety Shut-Off | 38.5bar/3850kPa(558psi) | |||
| Recovery Rate (kg/min) | Categorys Ⅲ | Categorys Ⅳ | Categorys Ⅴ | |
| Vapor | 0.26 | 0.29 | 0.34 | |
| Liquid | 3.56 | 5.04 | 6.55 | |
| Operating Temperature | 0°C-40 °C | |||
| Dimensions | 370x250x300 mm | |||
| Weight | 12.7 kg | |||
